HDMI KVM Switch 4X1 (4K60Hz)

₹ 9,999.00

1 in stock

SKU: ER2830 Category: Tags: , ,

Product Overview

Introduction

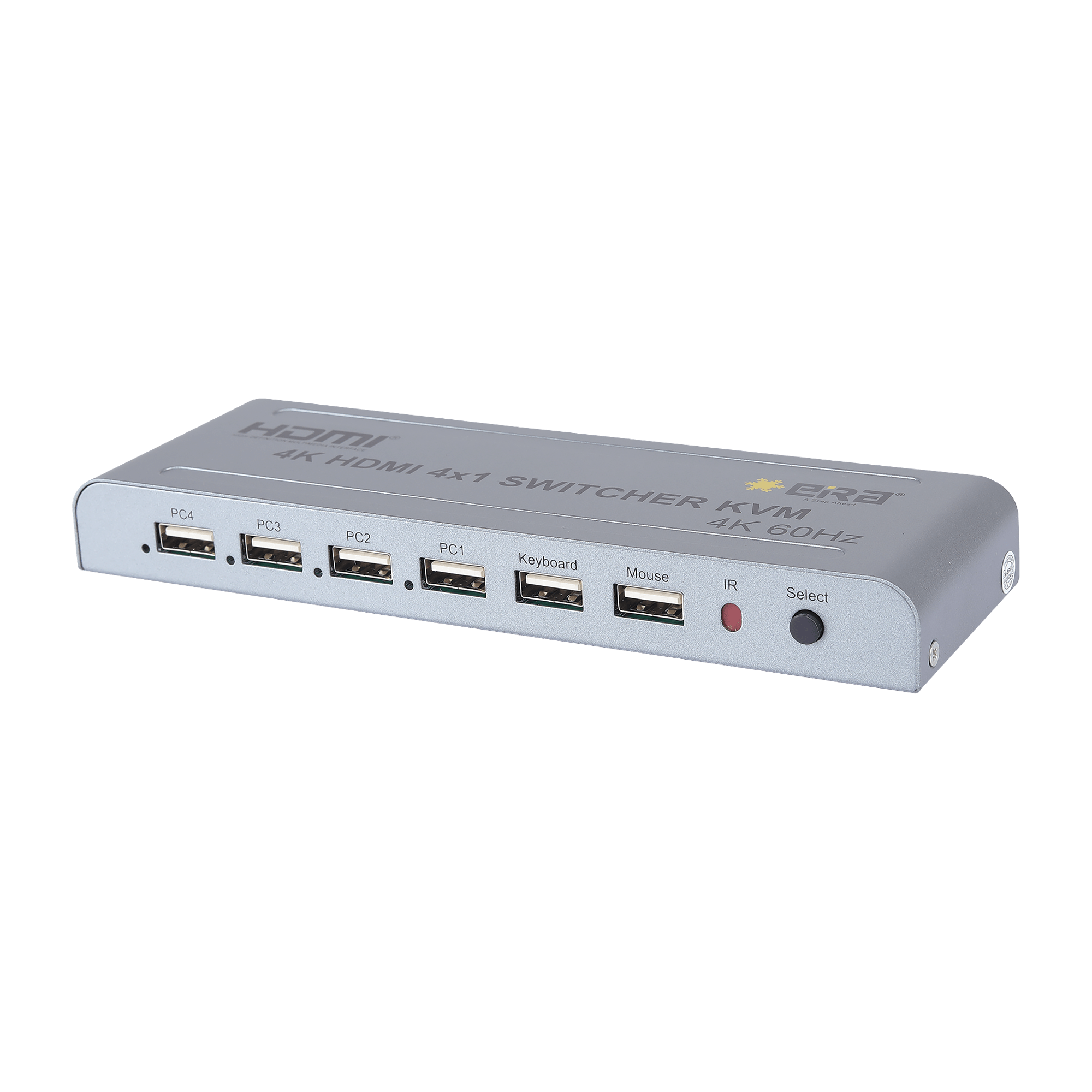

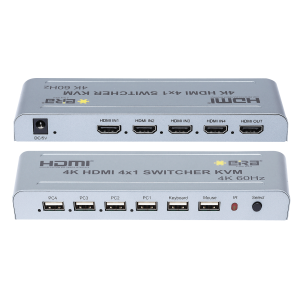

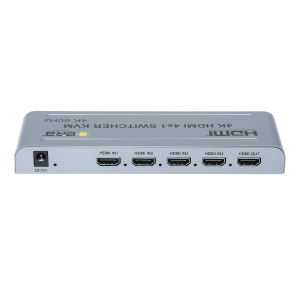

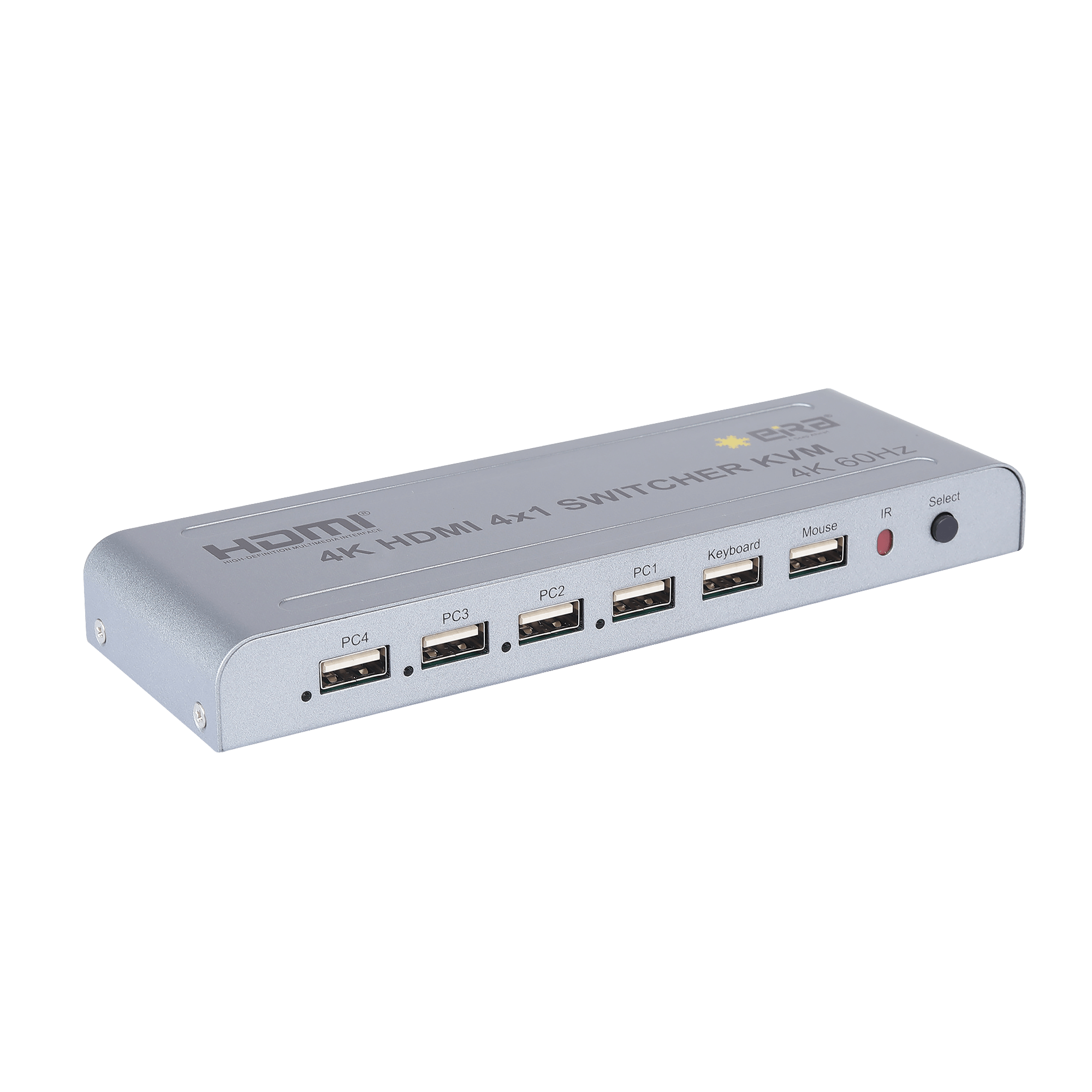

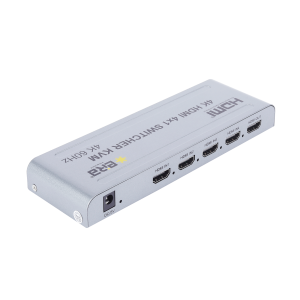

The EiRA 4x1 HDMI KVM Switch is a versatile device that allows up to four PCs or HDMI compatible sources to connect to a single display terminal. Switching between sources is seamless and can be done using a remote control, buttons on the unit, or a keyboard. Supporting all HD formats, including 720p, 1080i, 1080p, 4K/30Hz, and 4K/ 60Hz, this switcher delivers exceptional video quality. It also supports multichannel audio, ensuring a high-quality audio-visual experience. Ideal for use in offices, meeting rooms, and classrooms, this HDMI switch simplifies the management of multiple HDMI sources, making it a practical solution for various professional and educational settings

Features

  • Supports 4 HDMI inputs and 1 HDMI output
  •  Supports 3D video playback
  •  Maximum video resolution: 4K/60Hz
  •  Supports 18Gbps data rate with TMDS clock up to 600MHz
  •  Compatible with 24/30/36-bit deep color
  •  Automatically switches HDMI input ports (last port has priority)
  •  Supports USB 2.0
  •  Provides 4 USB hosts(PC) and 2 USB devices (mouse/ keyboard/U disk)
  •  Compatible with wireless mouse and keyboard
  •  Supports multiple operating systems: Windows, Linux, Mac OS, and Android
  •  Plug-and-play, no need for additional drivers or installation.

Specifications

BrandEiRA
SKU CodeER2830
Product NameHDMI KVM Switch 4X1 (4K60Hz)
Input4 x HDMI
4 x USB-A
Output1 x HDMI
2 x USB-A
HDMI VersionHDMI 2.0
HDCP VersionHDCP2.2
HDMI Resolution4K/60Hz
USB rateLow speed(1.5Mb/s); Full speed(12Mb/s); High speed(480Mb/s)
Support Video format3D
Support video color format24/30/36 bit Deep color
Audio formatDTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth600MHz
Max baud rate6x3Gbps
Input cable distance≤5m AWG26 HDMI standard cable(4K/60HZ)
Output cable distance≤5m AWG26 HDMI standard cable(4K/60HZ)
USB cable lengthStandard USB 2.0 cable ≤ 2m
Input power supplyAC (50Hz, 60Hz) 100V-240V
Output powerDC5V/1A
Max working current500mA
Operation temperature-15°C to +55°C
Relative humidity5 to 90%RH (No Condensation)
Housing Color : Silver
Material: Aluminium Alloy
Dimensions177mm(L)x58mm(W)x20mm(H)
Net weight210 gms
Warranty*1 year


Downloads

   User Manual

Video

Warranty

Duration (Warranty Period)12 Months (from Invoice date)DOA (Dead on Arrival) Period7 Days (from Invoice date)TypeReturn to Base (Eira Tek)RTB (Return to Base) Period12 Months (from Invoice date)
* For further information regarding Eira Tek's warranty procedure, please see our Warranty Policy.
