HDMI Splitter 1×2 (4K30Hz)

 3,899.00

1 in stock

Product Overview

Introduction

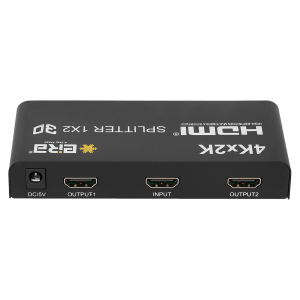

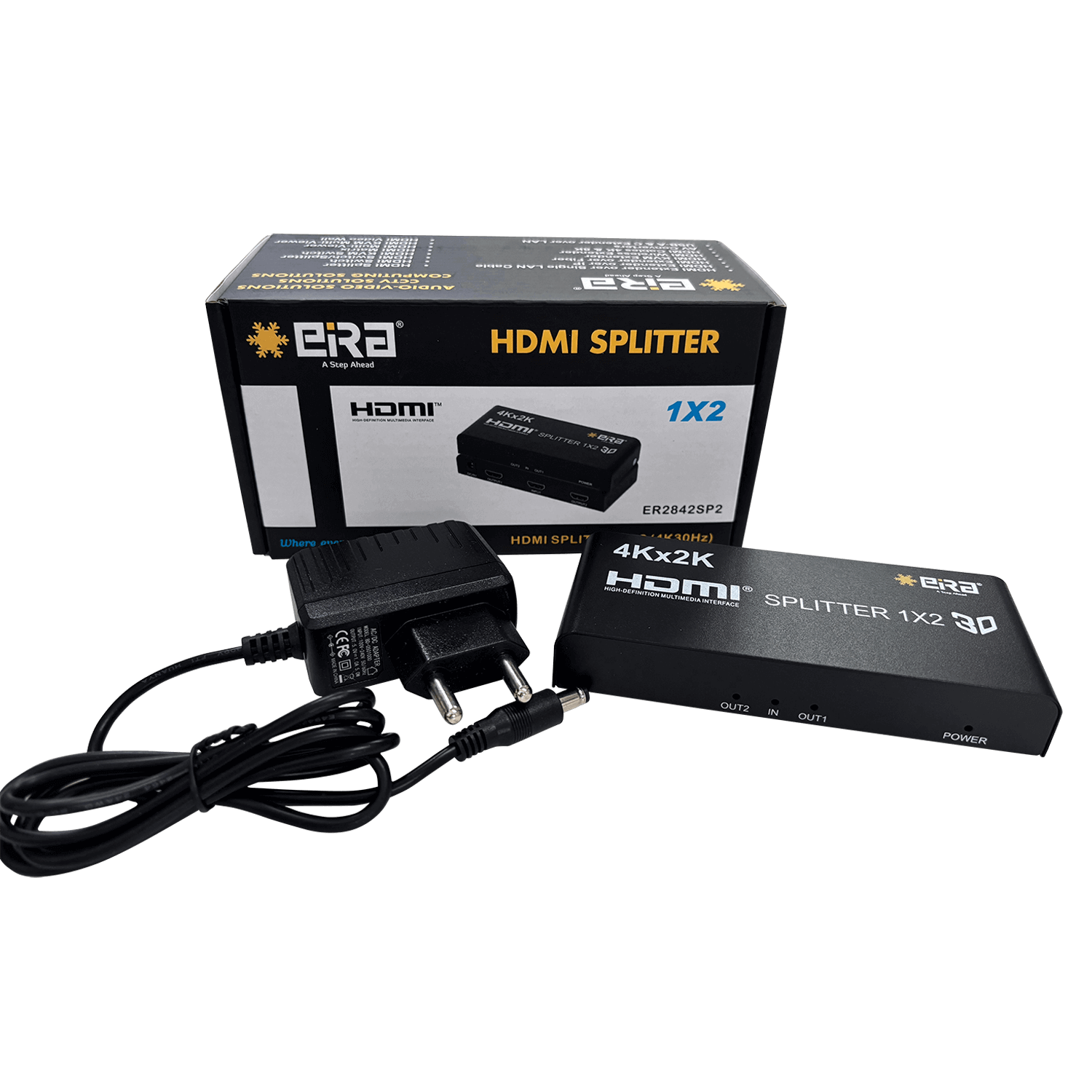

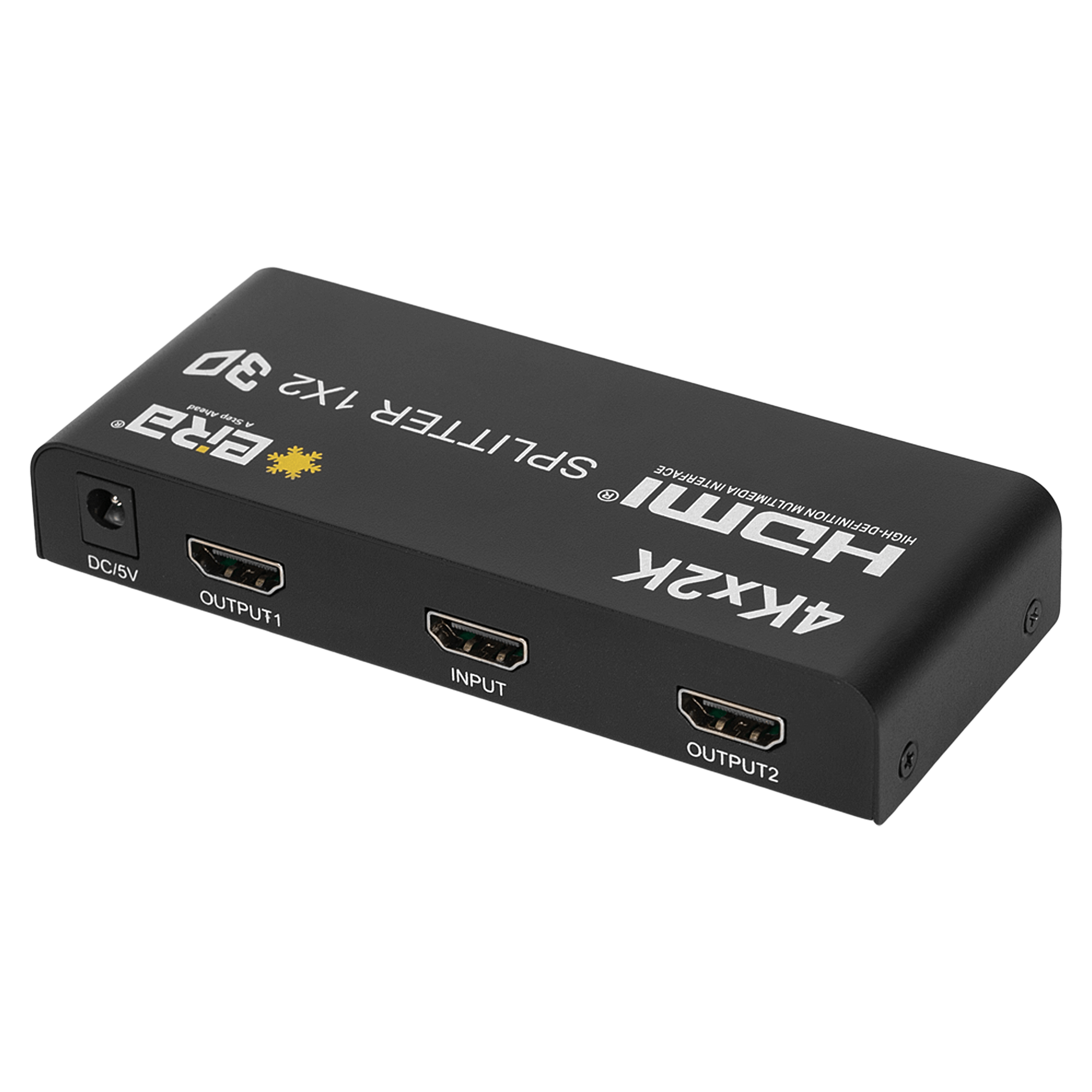

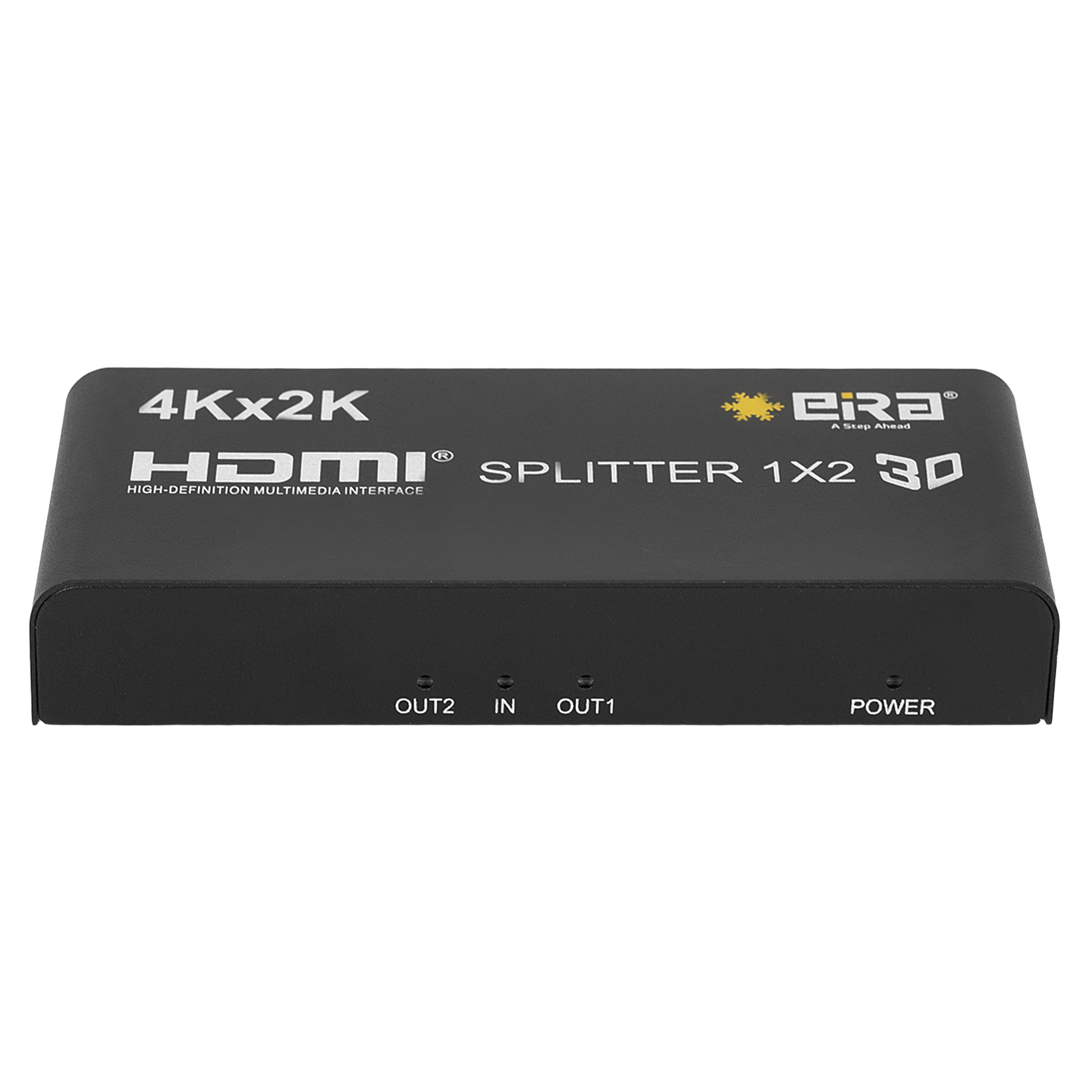

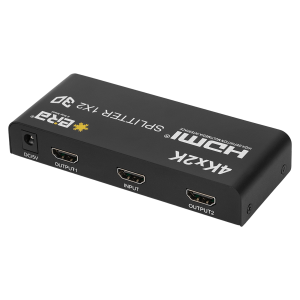

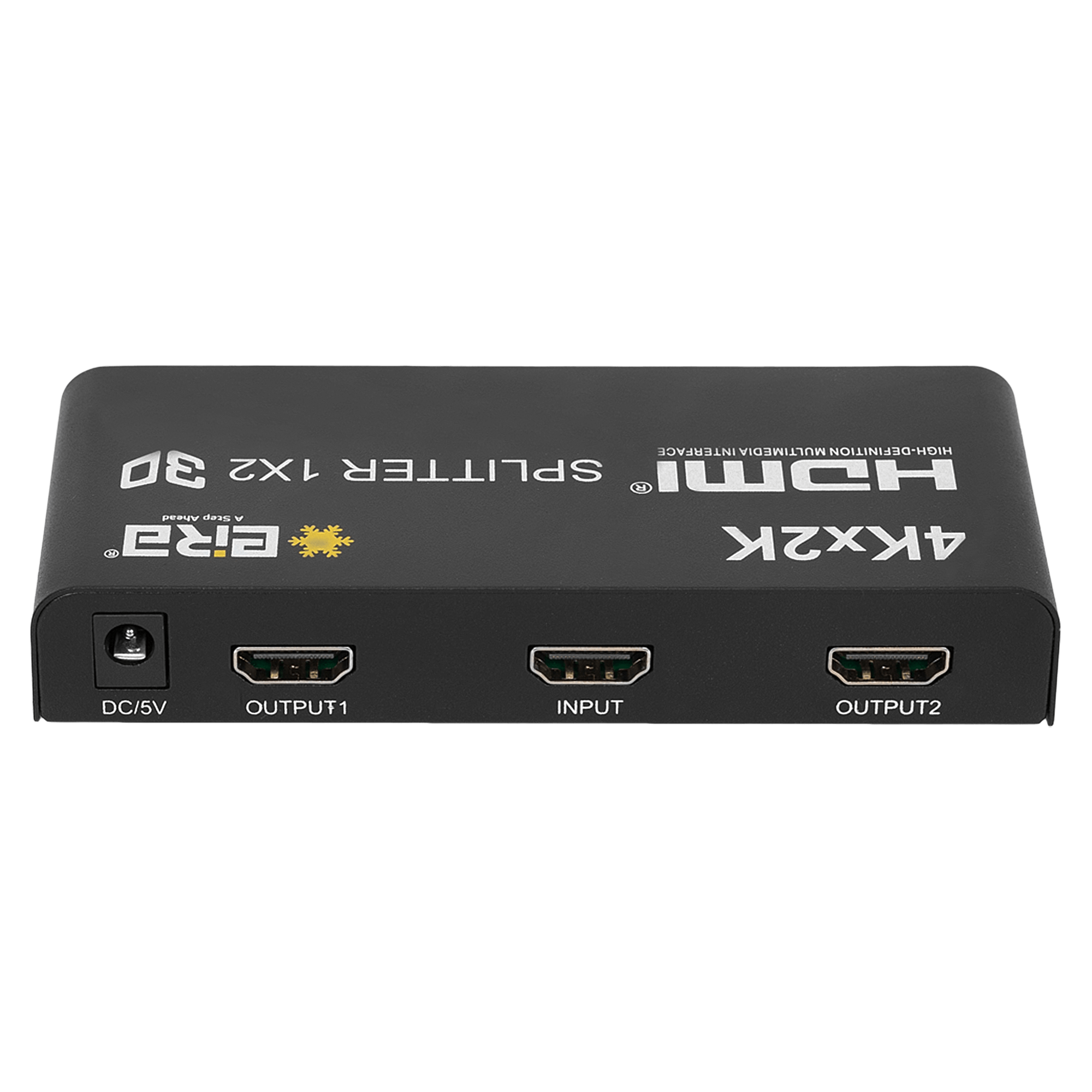

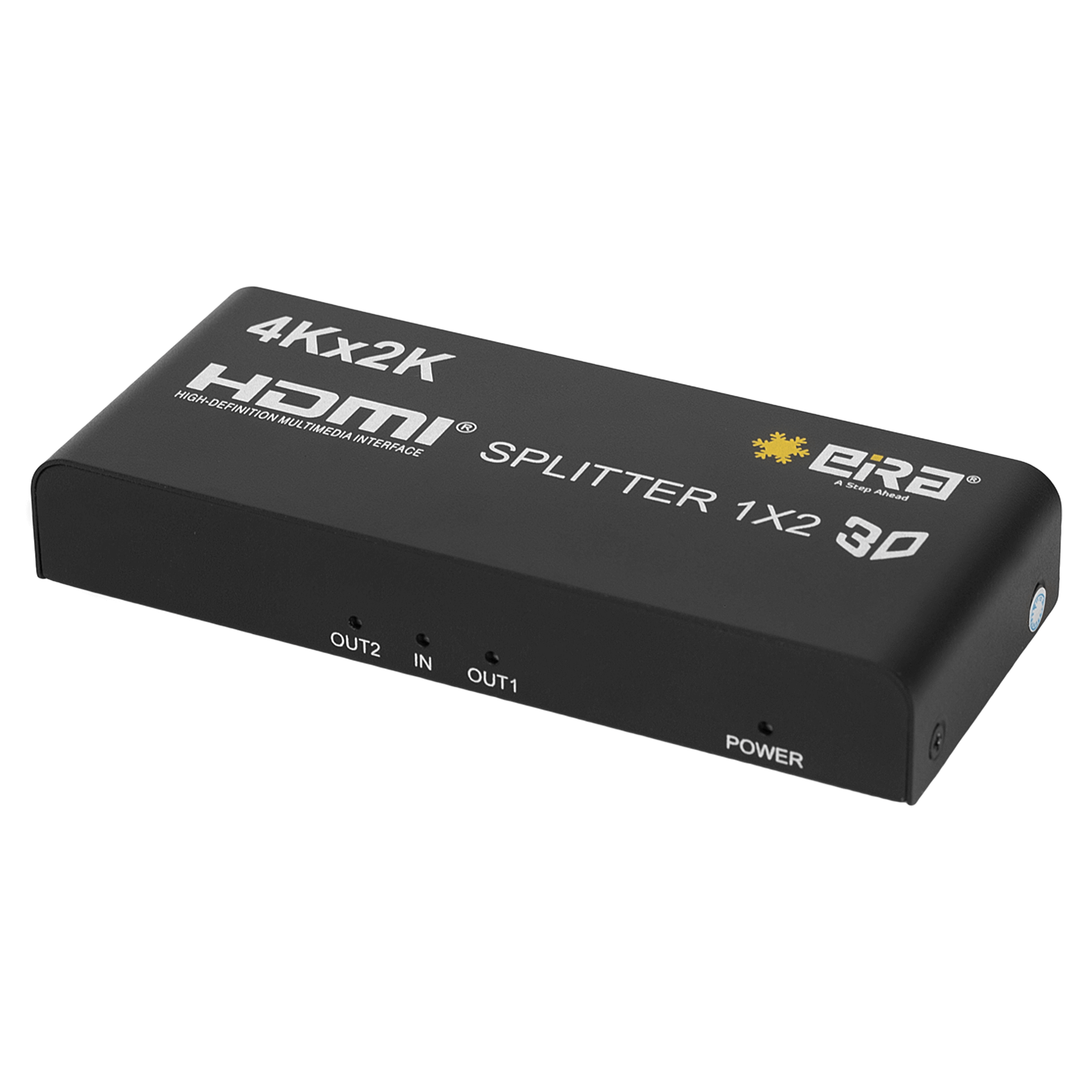

The EiRA 1x2 HDMI Splitter allows a single HDMI source to be transmitted to two HDMIcompatible displays, such as monitors or projectors. It is an ideal solution for sharing highdefinition video and audio from devices like DVD players, A/V receivers, and set-top boxes. Additionally, the splitter can be used at the end of a long HDMI cable to regenerate and enhance the signal, ensuring stable transmission over extended distances. Supporting resolutions up to 3840x2160 at 30Hz, this device delivers sharp and clear visuals, making it perfect for home theaters, presentations, and multi-display setups.

Features

  • HDMI 1.4b Support: Compatible with HDMI 1.4b version forreliable performance
  • 3D Video Format: Supports 3D video formats forimmersive viewing experiences.
  • High Resolution: Handles resolutions up to 3840x2160 at 30Hz for clear and detailed visualsHigh Data Rate: Supports a maximum baud rate of 3.4 Gbps and a TMDS clock rate up to 340 MHz.
  • Deep Color: Supports 8/10/12-bit deep color for vibrant and accurate color reproduction
  • Cable Length: Works with AWG26 HDMI standard cables; input and output up to 8 meters each.
  • Multiple HDMI Sinks: Distributes one HDMI source to up to two HDMI displays (e.g., DVD player, A/V receiver,set-top box).
  • Power Supply: Includes a 5V/1A power adapterfor operation.

Specifications

BrandEiRA
SKU CodeER2842SP2
Product NameHDMI Splitter 1x2 (4K30Hz)
Input1 x HDMI ( Type A, 19 pin, female)
Output2 x HDMI ( Type A, 19 pin, female)
LED1 x Power LED
1 x Input LED
2 x Output LED
HDMI VersionHDMI 1.4
HDCP VersionHDCP 1.4
HDMI Resolutionup to 3840x2160/30Hz
Video format8/10/12bit Deep color
Audio formatDTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth340MHz
Max baud rate3.4Gbps
Input cable distance≤8m AWG26 HDMI standard cable
Output cable distance≤8m AWG26 HDMI standard cable
Max working current500mA
Input power supplyAC (50Hz, 60Hz) 100V-240V
Output powerDC5V/1A
Operation temperature-15°C to +55°C
Relative humidity5 to 90%RH (No Condensation)
Housing Color : Black
Material: Aluminium Alloy
Dimensions128mm(L)x53mm(W)x23.5mm(H)
Net weight139 gms
Warranty*1 year

Downloads

     User Manual

Video

Warranty

Duration (Warranty Period)12 Months (from Invoice date)DOA (Dead on Arrival) Period7 Days (from Invoice date)TypeReturn to Base (Eira Tek)RTB (Return to Base) Period12 Months (from Invoice date)
