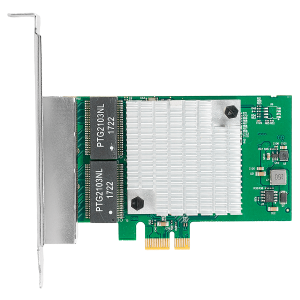

PCIe x1 to 4-port Gigabit Lan Card (RTL8111H Chipset)

Product Overview

Product Overview:

EiRA PCie Quad-Port Gigabit Network Card provides 4*RJ45 1000mbps ports and support 10/100/1000M rate full duplex, half-duplex adaptive. It sends Gigabit super-long frame, highest can provide two-way data transfer rate of 1000M on each port. Using this you can implement gigabit network to the desktop & enhance network performance. It is much faster than, and also fully backward compatible with 10/100BASE-T systems, therefore, it can be easily plugged into almost any existing network with CAT-5 cabling.

Product Highlights:

• Complies with PCI-Express Revision 2.1, backward compatible with 2.0, 1.1 and 1.0a
•  Complies with PCI Power Management Specification Revision 1.2
•  PCI-Express 1-Lane (x1) interface
•  Supports standard and low profile chassis
•  A high performance 1000BASE-T Ethernet controller card
•  Backward compatible to 10/100BASE-T networking
•  Supports jumbo frame to 9K bytes
•  10/100/1000Mbps data rate auto negotiation operation
•  Compatible to existing CAT-5 UTP cabling
•  Fully compliant with IEEE802.3,IEEE802.3u, IEEE802.3ab
•  Supports half / full duplex mode and 802.3x Flow Control
•  Supports IEEE802.1P Layer2 Priority Encoding
•  Supports IEEE 802.1Q VLAN tagging
•  Transmit /Receive on-chip buffer support
•  Crossover Detection and Auto Correction operation
•  Supports power down/link down power saving
•  Wake-on-LAN and remote wake-up function support
•  4 * RJ45 Gigabit LAN port
